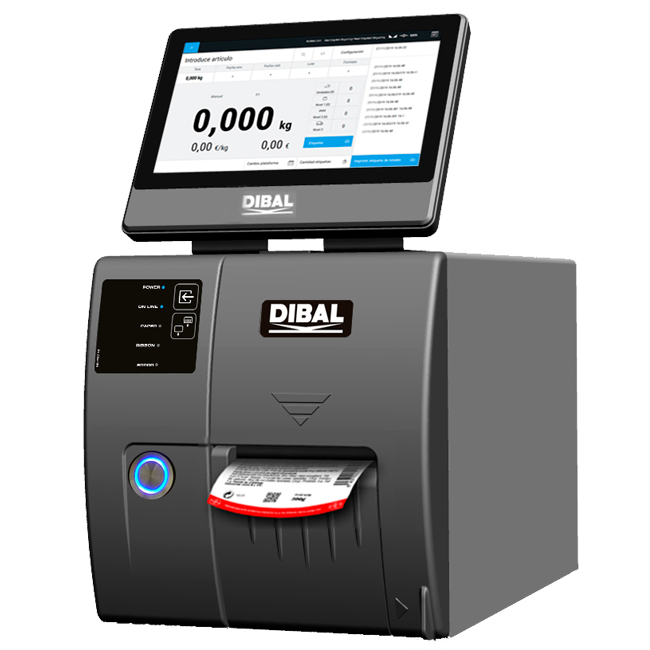

Touch Screen Manual Labellers LP-5000

Outstanding functions

• Possibility of labelling fixed/variable weight or amount.
• Checkweigher mode with filling display on the status bar.
• Access to settings and uses depending on user levels.
• Complete, easy-to-edit job information for quick on-screen changes (client, batch, price, tare, dates, traceability, label format...).
• Graphic designer of labels in the equipment for creating and editing formats.
• Tares: fixed, glaze percentage, accumulative…
• Generic traceability on label.
• Label management of totals (up to 3 levels) for easy editing and reprinting.
• Option to print text in different languages (consult).
• Own print fonts and any kind of TTF fonts.
• Loading and processing of logos and easy printing images.
• USB interface for full or partial backups, uploading logos and images, and importing/exporting data.
• Configuration and printing of most one- and two-dimensional barcodes.
• Adapted to comply with EU regulation 1169/2011 on food labelling information.
• Automatic or manual label printing of products with variable weights, or preprogrammed for fixed weight or non-weighed articles.
• Suitable for legal metrology.

Weighing (optional)

• Connection to 1 weighing platform up to 16 loadcells with metrological verification.
• Optional:
  • Connection to 2nd weighing platform up to 16 loadcells with metrological verification.
• Wide possibility of ranges.

Labelling system

• Printing type: Direct thermal (DT).
• Optional:
  • Thermal transfer (TT) (ribbon).
• Printer head: 4” long life with history control.
• Resolution: 8 dots/mm.
• Movable paper sensor (can be adjusted for label width and type).
• Printing speed: Up to 250 mm/s.
• Control of printer usage for predictive maintenance.

Labels

• Dimensions: From W30 x L30 up to W100 x L500 mm.

• Max. exterior diameter <175 mm. (40 mm tube).
• Max. exterior diameter <200 mm. (76 mm tube).
• Maximum width of back paper: 102 mm.
• Option to use paper, polypropylene and perforated cardboard labels.

CPU*

• Processor: Celeron N3160.
• RAM: 4 GB DDR3 (expandable to 8 GB).
• Hard disc: 128 GB.

*Subject to changes without prior notice, due to improvements.

Construction

• Structure: AISI 304L stainless steel, anodised aluminium and textured ABS.
• Console: ABS plastic.
• Screws and roller material tractors and shafts of the labelling station: Stainless steel.

Display

• 10.1” flat TFT touch screen (resolution: 1,024 x 600) projected capacitive.

*Optional 15” resistive TFT.

Communications

• 1 TCP/IP Ethernet.*
• 2 RS-232.*
• 2 back USB (3.0 + 2.0).*
• Optional Wi-Fi.

*RS-232 connections to the interior and watertight plugs for USB and USB and Ethernet for added protection.

PC software

• Communications and management of the machine from any PC on the network (web server integrated in the machines without the need to install any extra application). The machine can be accessed from any web browser and from any platform (Windows, Android...).
• Access to configuration and uses according to user levels.
• Data exchange systems:
  • Dibal API: based on webservices for loading/reading LP5000 data and its operation.
  • File exchange with upload/download of information (Excel or CSV).

Power supply

• 110-230 VAC 50/60 Hz.

Possible integration with other equipment

• Weighing platform (up to 16 loadcells).
• Another LP-5000.
• Printers with ZPL interface (up to 3 simultaneously. Only for total labels).
