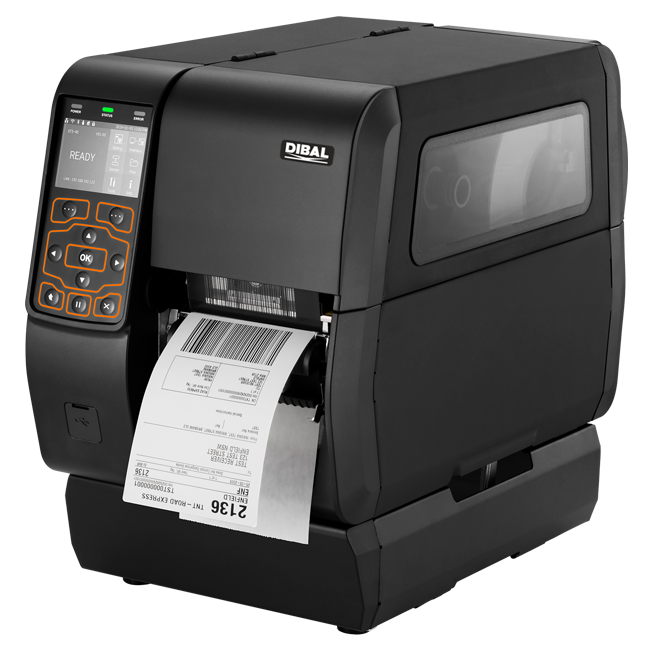

External label printers IIE48

Outstanding functions

• Higher print speed, operating and printing efficiency, and compatibility.
• Sensors: transmissive (detects the gap between labels), reflective (detects the mark or the black dot to jump label), ribbon-end and cover open (detects if the cover is open).
• Simple Wi-Fi setup with mobile phone.
• Copying printer settings and data via USB stick.
• Flexible label guide: allows different label widths.
• Simple label and ribbon loading, roller and printhead maintenance and replacement.
• Compatible with the main software and programming languages on the market.

Labelling system

• Printing type:
  • Thermal Transfer (TT) o Direct Thermal (DT).
• Resolution:
  • 8 dots/mm.
• Printing speed:
  • Up to 356 mm/ses.
• Dimensions:
  • Up to W104 mm x L4.000 mm.
• Ribbon:
  • Wax, wax/resin and/or resin.
  • Outside winding or inside winding.
  • Width: from 50 mm to 110 mm.
  • Length: up to 450 mm.
  • Inside diameter: 25.4 mm.

Labels

• Label type:
  • Conventionals.
• Dimensions:
  • Width: from 25 mm to 114 mm.
• Thickness:
  • From 0,06 mm to 0,30 mm.
• Separation:
  • Gap, Black Mark, Notch, Continuous, Fan-Fold.
• Roll diameter:
  • Up to 203 mm.

Construction

• Structure:
  • Aluminum body with special anti-adhesive coated metal case.

Display

• 3.5 inch HVGA (262K Colors) TFT LCD.

CPU

• RAM: 512 MB SDRAM and 512 MB Flash.

Communications

• USB.
• 2 USB Host.
• Serial.
• Ethernet.

Power supply

• External power adaptor 100-120 / 200-240 VAC, 50/60 Hz.

Possible integration with other equipment

• VT-1200 PC touch screen weighting indicator.
• LP-5000 touch screen manual labeller.
