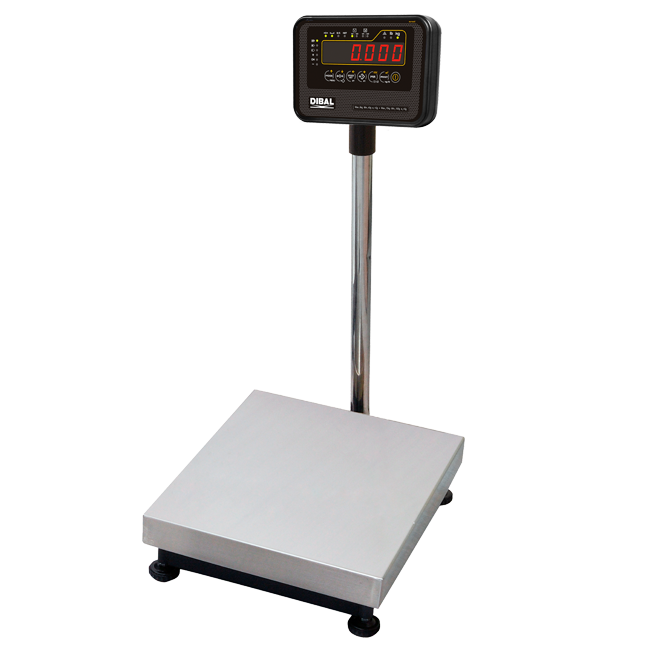

Single Loadcell Bench Scales BEV

Main characteristics

• Set consisting of weight indicator, column and weighing platform.
• 1 load cell.
• Valid for legal metrology (see section on equipment metrological verification).

Functions

• Weight-Tare-Accumulation.
• Piece counting.
• Checkweighing (minimum-target-maximum).
• Dosing: 1 product / 2 speeds (with 4 Input/Output option. Only available for model DMI-610 S. Steel).
• Checkweighing (with 4 Input/Output option. Only available for model DMI-610 S. Steel).
• 4-20 mA / 0-10 V analog output (optional, only available for model DMI-610 S. Steel).
• Optional internal storage memory.

Construction

• 3 platform versions available:
  • A- Iron structure, aluminium load cell and stainless steel plate.
  • B- Stainless steel structure, protected aluminium load cell and stainless steel plate (not suitable for saline environments).
  • C- Stainless steel structure, load cell and plate.
• Height adjustable feet.
• 2 weight indicator versions available:
  • DMI-610 ABS.
  • DMI-610 S. Steel.

Communications

• 2 RS-232 ports, 1 of them selfpowered (5 V / 500 mA).
• Ethernet (TCP/iP and UDP) (optional).
• RS-485/RS-422 optional (only available for the DMI-610 stainless steel).
• Several communications protocols available (contact us).

Simultaneous options

• 1 option. Ethernet communication, 4 Input/Output and Analog output options cannot be simultaneous.

Possible integration with other equipment

• External printer (Epson protocol).
• Dibal manual weigh-price labellers.
• Repeater (or another DMi as repeater).

PC Software

• DCM: For configuration, back-up, management and processing of data received by the weight indicators.
