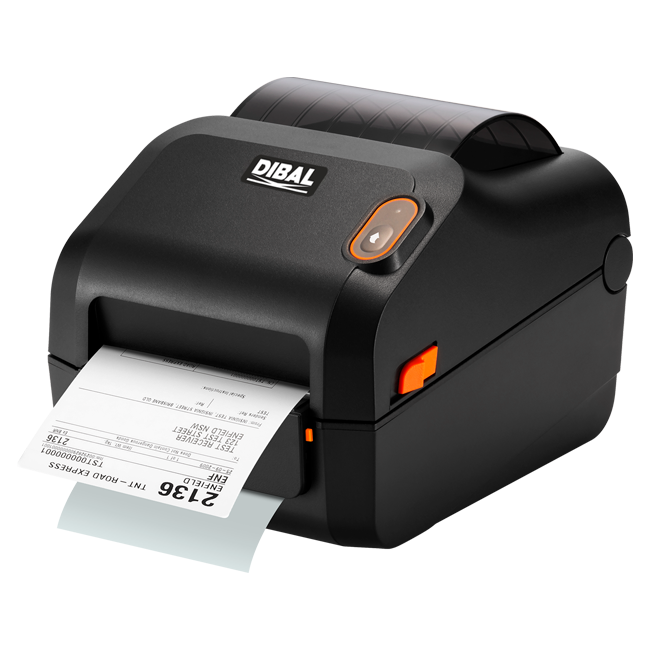

External label printers IRE48

Outstanding functions

• Desktop printer of up to 4” (118 mm) conventional labels (118 mm), easy to set up and easy roll change.
• Sensors: transmissive (detects the gap between labels), reflective (detects the mark or the black dot to jump label), and cover open (detects if the cover is open).
• Label Artist (Bixolon application for label design): allows multiple drawing functions and connection to DB.
• Simple, tool-free paper roll and printhead loading/replacement with adjustable retainer guide.
• Compatible with the main software and programming languages on the market.
• Media auto-calibration.
• Optional label peeler accessory.

Labelling system

• Direct thermal.
• Resolution: 8 dots/mm.
• Speed: up to 127 mm/sec.
• Dimensions: up to W104 mm x L1,000 mm.

Labels

• Conventional labels of different sizes and shapes, from 15mm to 118mm wide and 0.06mm to 0.20mm thick. Label roll up to 127 mm diameter.
• Label separation can be gap, black mark, notch, continuous or folded.

Construction

• Double-walled ABS plastic enclosure.

CPU

• Memory: 64 MB SDRAM and 128 MB Flash.

Communications

• USB 2.0.
• Bi-directional communication with all interfaces: allows printing commands to be sent, and also to ask for their status.

Power supply

• Mains: 100 - 240 VAC, 50/60 Hz.

Possible integration with other equipment

• PC scale.
• VT-1200 PC touch screen weighting indicator.
• LP-5000 touch screen manual labeller.
