LP-545

LP-545 PRODUCT DESCRIPTION



Get in touch
printer-receipts-labels
wifi-optional7
graphic-lcd-display1
connectable-platforms-up-to-4-load-cells5
up-to-10000-plus3
Verification
up-to-20-vendors3
ethernet-tcp-ip8
usb18

Robust stainless steel housing.

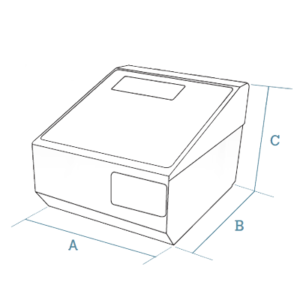

Data in mm

A285
B285
C240



MAIN CHARACTERISTICS

  • High performance label printer (suitable also for receipts).
  • Compliance with EU Regulation 1169/2011 on the provision  of food information to consumers.

FEATURES

  • Extensive information for each PLU: normal price and offer  price, price for weight scales and by kg/100 g, 3 names of 20  characters or 2 names of 30 characters, 20 free texts of 24  characters, 1 text of 3,000 characters, etc.
  • PLU search by number or name.
  • Preset keys to programming menus: to change prices,  register PLUs or vendors, etc.
  • Direct access to 999 PLUs from the keyboard.
  • Printing of the labeller menus.
  • Programmable macros: recording of a sequence of keys  to create direct access to any task (reopening of receipt,  lists, change in batch number etc.). LP-545 labellers have  as many macros as direct PLU keys, besides 10 specific  macros keys.
  • Sales and management reports: sales (by article, vendor,  time frames, last month, etc.), modified PLUs, etc.
  • Fast and reliable communication between labellers, with PC  and mobile devices (via DWS).
  • Option to record normal price and offer price for each  article.
  • Stock management by article.
  • Piece counting function.

WEIGHING

  • Connection to 1 or 4 load cells platform.

CONSTRUCTION

  • Stainless steel casing.
  • Access to all non-metrological components without the  need to unseal the labeller.

DISPLAYS

  • LCD matrix graphic display.
  • 2 selectable screens: full information (weight, price / kg,  tare, operators and article’s name) or weight only (with  check weighing function).

KEYBOARD

  • 150 keys (15 x 7).
  • 80 x 2 article preset keys (direct PLUs).

PRINTER

  • Label printer (also suitable for receipts by changing the  paper roll and the working mode).
  • 54 mm thermal printer.
  • High resolution (8 dots/mm) and speed (100 mm/sec).
  • Cassette for immediate paper roll change.
  • Optional:
    Linerless.

RECEIPTS

  • 15 fonts (6 monospaced  + 9 multispaced: more  modern and legible).
  • Up to 75 items.
  • 2 fixed formats + 2 programmable formats.
  • 4 logos.
  • Bar codes: EAN-13, EAN128 and CODE-128.
  • Name of vendor.
  • 9 payment methods.
  • Total in National currency  and other 3 currencies.
  • Discounts per line and  total.
  • Loyalty points.
  • Customers on account.
  • Recipes.

LABELS

  • 15 fonts (6 monospaced + 9 multispaced: more modern and  legible).
  • From W30 x L30 mm to W60 x L150 mm.
  • 20 fixed formats + 40 programmable formats.
  • 100 logos.
  • Bar codes: EAN-13, EAN-128, CODE-128 and QR codes.
  • 60 fields of information.
  • 100 programmable texts.
  • Manual and automatic pre-packing modes.
  • 3 levels of totals.
  • Printing of “n” identical labels.
  • Printing with 90º, 180º and 270º rotation.
  • Automatic adjustment of the paper detection option.
  • Check weighing function: it only prints the label if the product  is between a pre-established minimum and maximum  weight.
    Packaging date, expiry date and extra date (for any  application).
  • Alphanumeric batch number.
  • 10 types of generic traceability (for meat, fish, fruits, vegetables, etc.) up to 99 products. Included in the prevailing European legislation on bovine traceability.

FOOD INFORMATION

  • Compliance with EU Regulation 1169/2011 on the provision of  food information to consumers as of 13 December 2016:
    Minimum letter size: 1.2 mm.
    Effect (bold, underlined, or both) for each character in the text.
    Possibility of using the general text “G” (3,000 characters) for ingredients, in lower case or UPPER CASE to highlight allergens.
    Possibility of including a table of nutritional facts.
    Free texts (20 x 24 characters).
    For direct sale receipts and labels: possibility of indicating in the PLU name (with an * or other symbol) those that contain allergens and programming a text, such as “* Consult allergens”.
    Possibility of printing 2 labels for each operation: programmable by PLU, configurable information, 2nd automatic or manual label (also to be used as promotional labels).

COMMUNICATIONS

  • TCP/IP Ethernet for interconnection and connection to PC.
  • RS-232, for connection to scanner.
  • USB
  • Optional: Wi-Fi.

SECURITY

  • Access to different protected programming menus via configurable passwords.

INTERCONNECTION

  • Up to 16 DIBAL LP-545 labellers or 16 DIBAL Star series scales.

CONNECTIVITY WITH OTHER DEVICES

  • PC.
  • Bar code scanner (powered by the scale – 5 VDC) to read EAN-13, GS1 DataBar, EAN-128 and CODE-128 bar codes.

SOFTWARE (SEE SECTION ON SOFTWARE)

PC software:

  • DFS:                                                                                                                                                                                                   Programming of labellers.
    Receipt of sales data.
    Data backup copy.
    Graphic design of receipts and labels.
  • DLD                                                                                                                                                                                                                Graphic design of receipts and labels.
  • Integration tools: in Windows or Linux to facilitate communication with the Back-Office.

Labeller firmware:

  • DWS (Dibal Web Server):
    • Allows access to the information on each scale (via passwords) from any computer or mobile device with an Internet browser.

POWER SUPPLY

  • Mains: 110 up to 230 VDC.
  • Optional:
    Anti-blackout rechargeable internal battery 24 V and connector to external battery 24 V.
