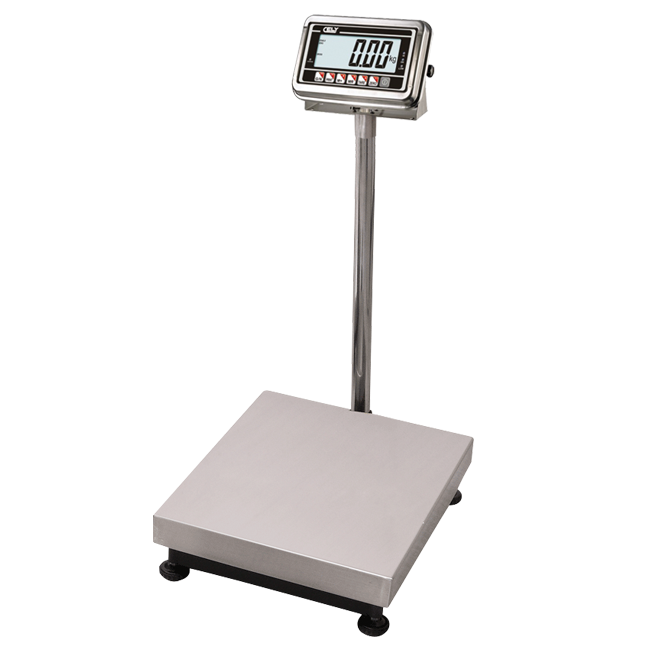

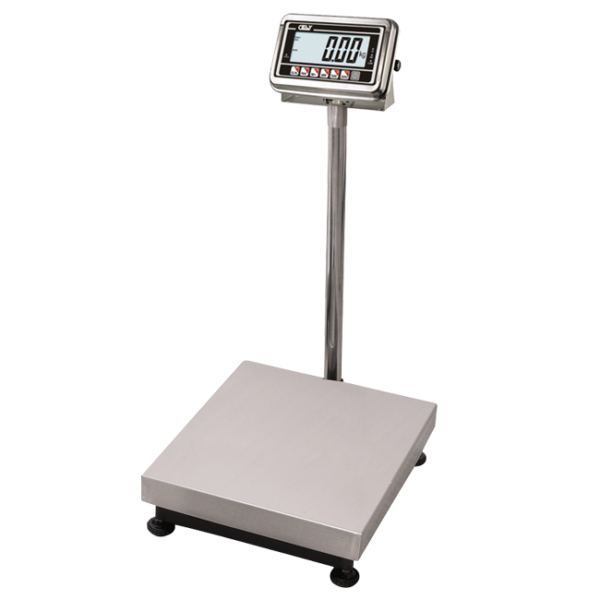

Indicator and single load cell platform bench scale
Data in mm
A | 300 / 400 / 600 / 800 |
---|---|
B | 300 / 400 / 600 / 800 |
C | With VC-80 I: 530-875 (min.-max.)* |
C | With VC-50 M: 585-930 (min.-max.)* |
* The height of the column varies according to the dimensions of the platform.
MAIN CHARACTERISTICS
- Set consisting of weighing platform, column and weight indicator.
- 1 load cell.
- Valid for legal metrology (see section on equipment metrological verification).
FUNCTIONS
- Weight.
- Check weighing (minimum-maximum).
- Accumulation.
- Zero.
- Tare.
- Piece counting (only VC-50 M).
CONSTRUCTION
- 3 platform versions available:
A- Iron structure, aluminium load cell and stainless steel plate.
B- Stainless steel structure, protected aluminium load cell and stainless steel plate (not suitable for saline environments).
C- Stainless steel structure, load cell and plate. - Height adjustable feet.
- 2 weight indicator versions available: (See section on weight indicators and repeaters)
VC-50 M.
VC-80 I.
