DPOS-400

Data in mm

MAIN CHARACTERISTICS

• Weight only or price computing scale for checkout applications.
• Modular and modern design.
• Easy integration into counters.
• ECR / POS connection.
• Optional tempered glass plate. Customizable with client’s logo.
• Valid for legal metrology.

FEATURES

• EAN heading programming (according to the communication protocol).
• Tare, fix tare and manual zero.
• Display of price in a secondary currency.
• Energy saving via programmable on and off back lighting switching and automatic disconnection.
• Power supply and communications through one single USB cable.

CAPACITY / ACCURACY

AVAILABLE FORMATS

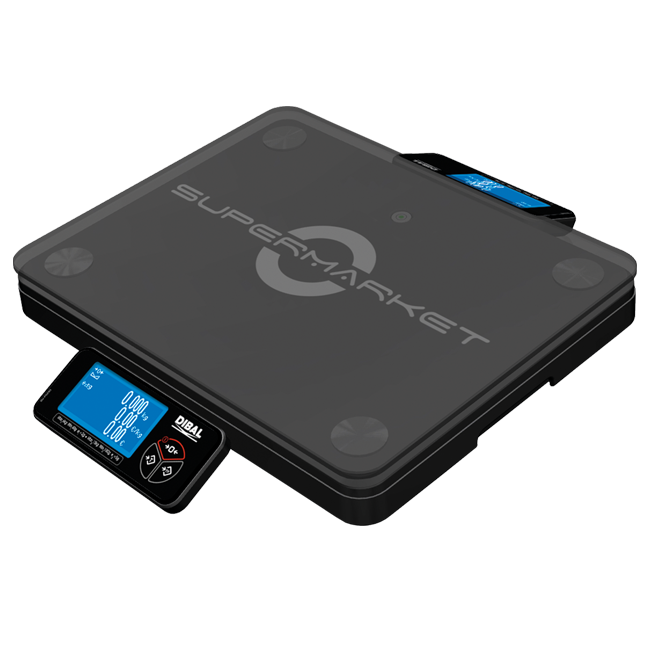

• Flat

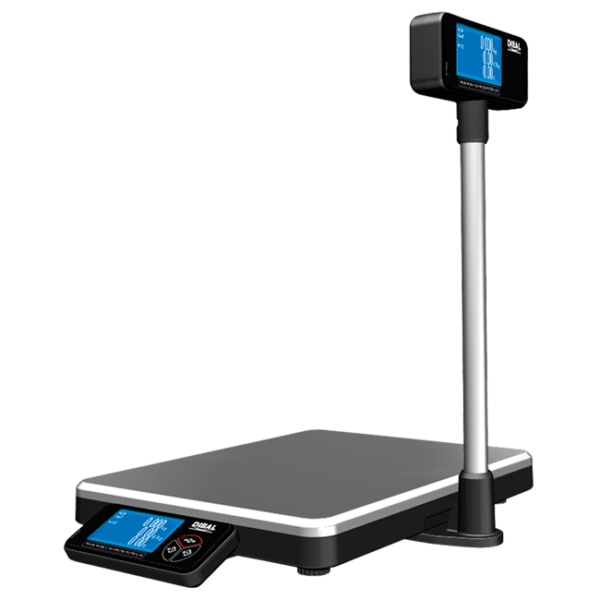

• Pole

CONSTRUCTION

• Structure:
  ABS plastic casing.
• Displays:
  Easy to install in multiple positions 1 or 2 displays.
  Backlit LCD matrix graphic display.
  5 digits (up to H20 mm) per display.
  Show only weight or weight, price/kg and total (connected to POS and depending on the communication protocol).
• 3-key keyboard.
• Stainless steel plate.
• Optional:
  Tempered glass plate (customizable with client´s logo).

Communication to PC / POS / ECR

• RS-232 interface.
• USB.
• Communication protocols available for the main POS and ECR in the market.
• Multi-protocols: the communication protocol is selected in the scale among the available ones. New protocols can be added from PC by telecharge (maximum: 60 protocols).

Power supply

• Mains: 110/240 VAC through a USB cable with an AC/DC 5 V / 500 mA adapter.
• Others: through a USB cable (PC, etc.).
